ElectroCraft DC 1.6" brushed motor
Part Number: 116-11216-27

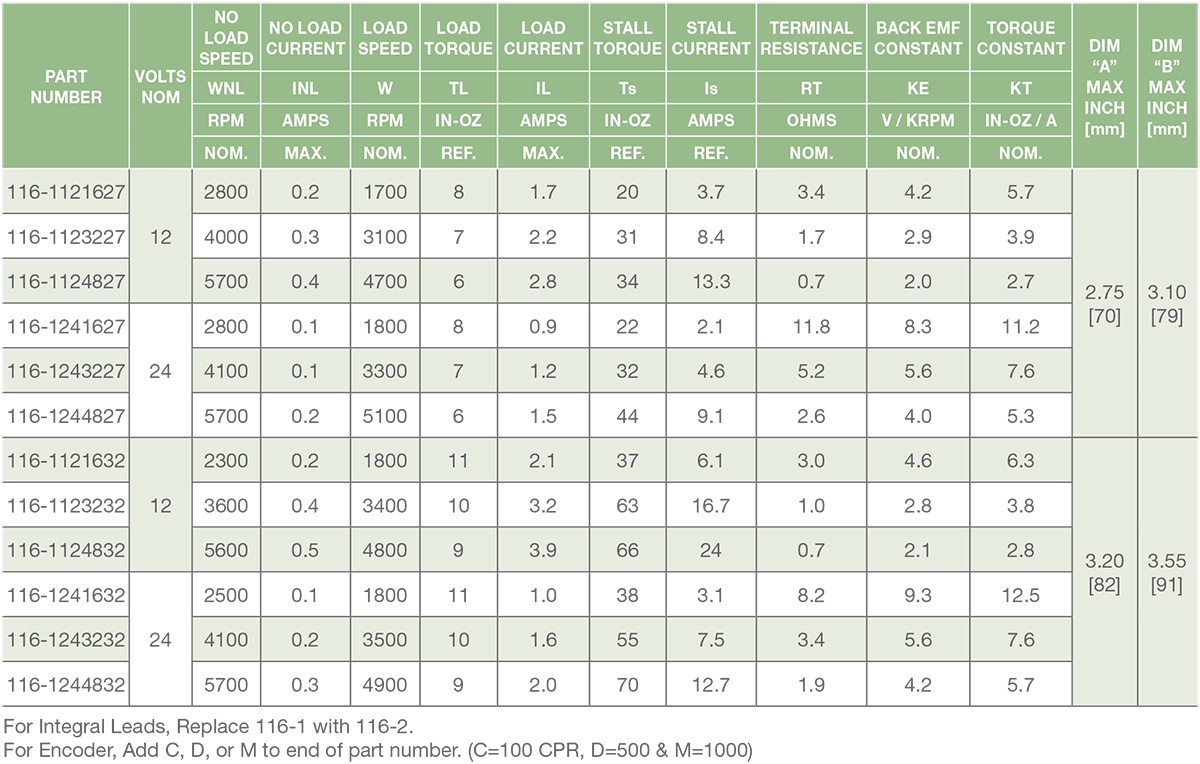

The Hansen series 116-1 (1.6" diameter) permanent magnet DC brush motor is available to serve the industrial, instrumentation and automotive markets in either open-loop or close-loop applications. Rotor laminations are skewed to provide very low cogging torque and no preferred rotor position. Standard catalog stall torque ratings are in the range of 19 to 78 oz-in, while no-load speeds range from 1,700 to 8,000 rpm maximum. Encoders with line counts up to 2048 are available to provide velocity and position feedback information. Reliability is further enhanced by long life, pre-loaded ball bearings. Special windings, shaft and mounting configurations are available to meet the requirements of OEM custom applications.
Prices indicated are for low order quantities. In most cases we can offer significant reductions when purchased in volume, so please contact us if you have such a requirement and we will prepare a special quote.
