ElectroCraft DC 2.1" brushed motor
Part Number: 121-11216-36

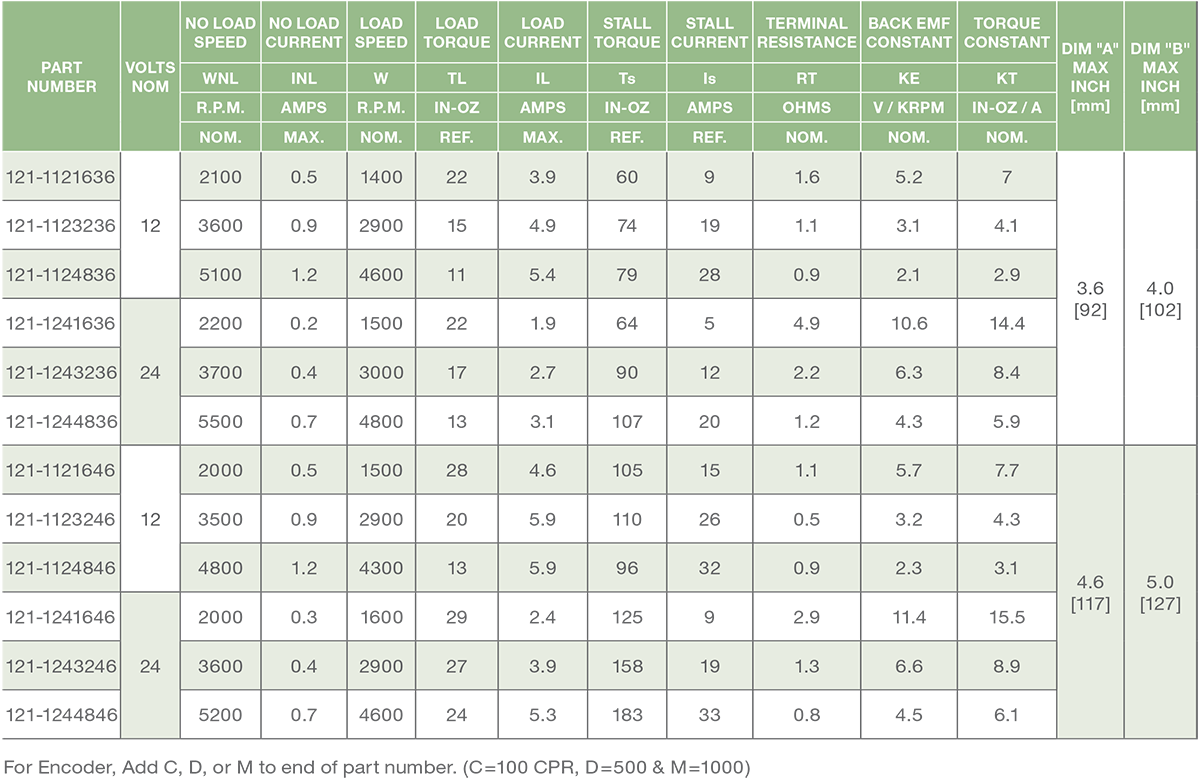

The series 121-1 (2.1" diameter) permanent magnet DC motor is available to serve the industrial, instrumentation and automotive markets in either open-loop or close-loop applications. Rotor laminations are skewed to provide low cogging torque and no preferred rotor position. Standard catalog stall torque ratings are in the range of 60 to 180 oz-in, while no-load speed ranges from 2,100 to 8,000 rpm max. Encoders with line counts up to 2048 are available. Reliability is enhanced by long life, pre-loaded ball bearings. Special windings, shaft and mounting configurations are available to meet the requirements of OEM custom applications.
Prices indicated are for low order quantities. In most cases we can offer significant reductions when purchased in volume, so please contact us if you have such a requirement and we will prepare a special quote.
