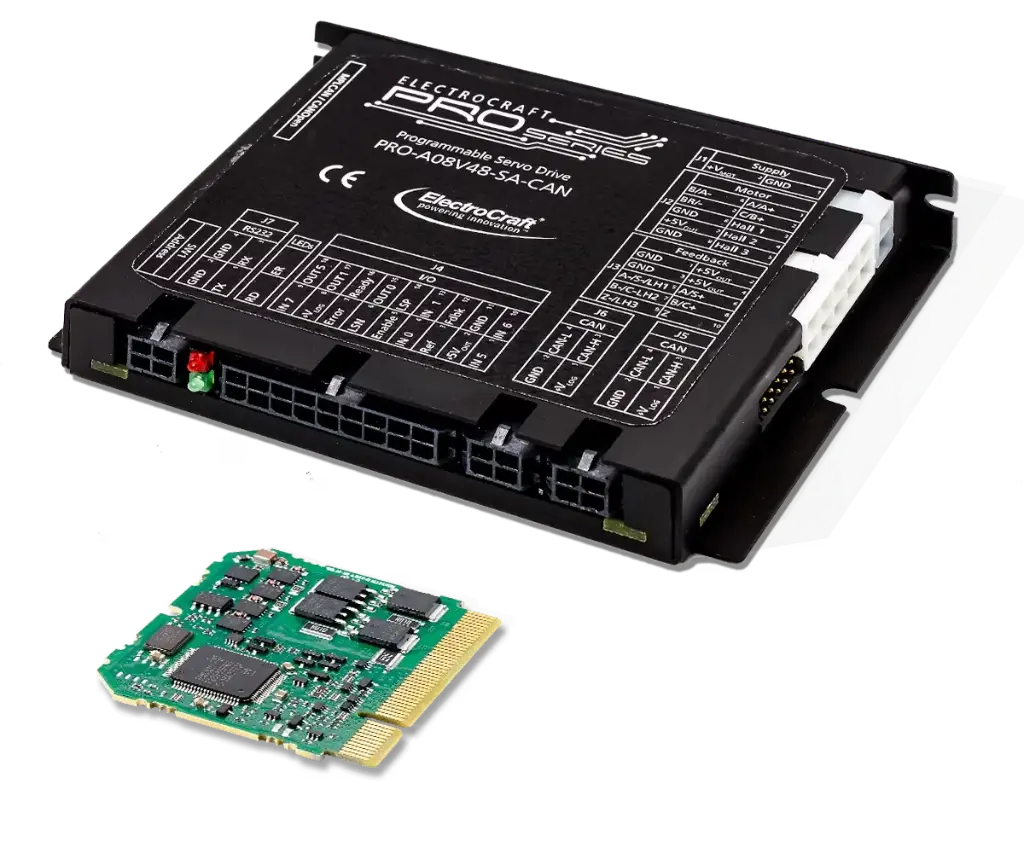

ElectroCraft Pro series drive, 8A/20A
Part Number: PRO-A08V48B-SA-CAN
The ElectroCraft PRO Series programmable DC motor drives are based on the latest in digital drive technology, offering a cost effective, compact and modular solution for the control of rotary or linear brushless, stepper or PMDC brush motors. The ElectroCraft PRO Series drives integrate advanced motion control functionality in two form factors: PCB Mount (PE models) or built into a stand-alone package with pluggable connectors (SA models).
With a comprehensive and flexible motion instruction set, the PRO-A08V48A is an intelligent programmable servo drive that is useful for a wide variety of motor architectures, including Brushless DC Motors, PMDC Brush Motors, DC Stepper Motors and Stepper Linear Actuators, and a wide variety of applications.
Series: PRO-A08V48
Operating Voltage: 11 to 50 VDC
Peak Output: 20 Amps (peak of sine)
Continuous Output: 8 Amps (peak of sine)
Commmunications: RS-232, CANbus or EtherCAT
Form Factor: Stand-alone
Prices indicated are for low order quantities. In most cases we can offer significant reductions when purchased in volume, so please contact us if you have such a requirement and we will prepare a special quote.
