Motors

Pricelist: AUD Prices Pricelist
Sort By Sort By: Newest Arrivals
[ZSH 57/3.200.6,5-IP68+] Phytron ZSH Stepper, 57mm, 3 stacks, IP68, coated

Phytron ZSH Stepper, 57mm, 3 stacks, IP68, coated

2-phase hybrid stepper motor- size 57, 3 stack, 200 steps, nominal current 6,5A Custom-made:- protection class IP68 with special coating
$ 1,968.57
[ZSH 57/3.200.6,5-IP68] Phytron ZSH Stepper, 57mm, 3 stacks, IP68

Phytron ZSH Stepper, 57mm, 3 stacks, IP68

2-phase hybrid stepper motor - size 57, 3 stack, 200 steps, nominal current 6.5 A Custom-made: - protection class IP68
$ 1,302.85
[ZSH 57/3.200.6,5] Phytron ZSH Stepper, 57mm, 3 stacks

Phytron ZSH Stepper, 57mm, 3 stacks

2-phase hybrid stepper motor - size 57, 3 stack, 200 steps, nominal current 6,5 A
$ 911.03
[phyBASIC-42-3-1,5-J3] Phytron phyBASIC NEMA17, 0.62Nm holding

Phytron phyBASIC NEMA17, 0.62Nm holding

2-phase Hybrid stepper, NEMA17, 0.62Nm holding torque, 42mm dia, length: 3, 200 steps, nominal current 1.5A, JST connector w/ 300mm leads
$ 254.00
[IBI057 0168NE1000 E-S402] Delta Line Integrated BLDC, 57mm, 168W, EtherCAT

Delta Line Integrated BLDC, 57mm, 168W, EtherCAT

BLDC with integrated Motion Controller, Size 57 mm, Length (L) 164 mm, Interface EtherCAT, Rated Torque 0.44 Nm, Rated Power 168 Watt, Operating Voltage 24-36 Vdc
$ 1,944.00
[IBS080 0290NE100X C-S402] Delta Line Integrated BLDC, 80mm, 290W, CANOpen

Delta Line Integrated BLDC, 80mm, 290W, CANOpen

Size 80 mm, CANopen, 0.8/2.4 Nm, Rated Power 290 Watt, 24-48 Vdc
$ 1,607.10
[IVI080 0750NX100X C-S402] Delta Line IVI080, 750W Integrated Servo Motor, CAN

Delta Line IVI080, 750W Integrated Servo Motor, CAN

Integrated servo, 80mm frame, 48VDC, 750W, 3000RPM, 2.39/7.17Nm, 2500CPR encoder, CANOpen
$ 2,987.00

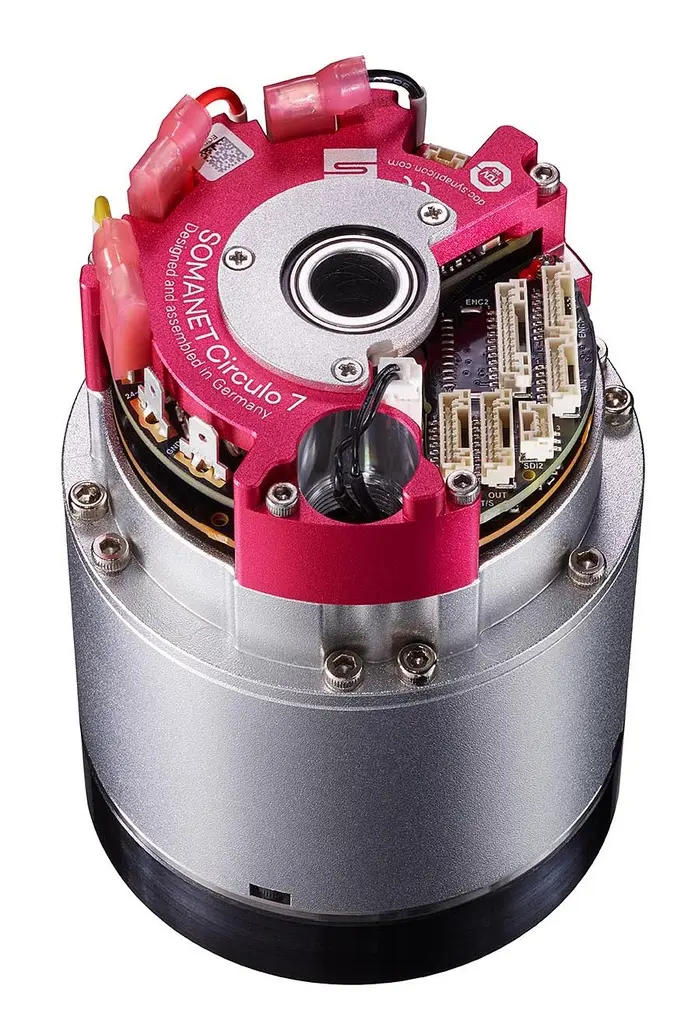

[AJP-I-17-101-EC-D1-SS-S-N-00-0000] Synapticon Actilink-JP 17

Synapticon Actilink-JP 17

Actilink-JP integrated actuator w/ Somanet circulo, 80mm OD, 128mm length, 24-48VDC, 22/66Nm, 46RPM, dual encoder, EtherCAT
$ 3,423.00
[IVI080 1000NE 1000C S402] Delta Line IVI080, 1kW Integrated Servo Motor

Delta Line IVI080, 1kW Integrated Servo Motor

80mm frame, 48VDC, 1kW, 3000RPM, 3.18/9.54Nm, 2500CPR encoder, CANOpen
$ 3,257.00
[80B333-0710-908J9-AA-E1(4-500)] JAT Ecospeed ATEX BLDC, 88mm frame

JAT Ecospeed ATEX BLDC, 88mm frame

EcoSpeed 80B333-0710 ATEX, BLDC Servo motor, Zone 1, Zone 2, 88mm flange, 60VDC, 1400RPM, 3.35/6.87Nm, 8000ppr inc encoder, Ex II 2G Ex db IIB T4 Gb IBExU04 ATEX1091 X
$ 4,575.00
[42BL70+22JMS-3-51.06] Delta Line 22mm BLDC, 24VDC, 51:1 gearbox

Delta Line 22mm BLDC, 24VDC, 51:1 gearbox

BL Series, Size 22 mm, Length (L) 68 mm, Rated Voltage 24 Vdc, Rated Torque 0.02 Nm, Rated Speed 3800 rpm, fitted with 51:1 22JMS gearbox
$ 768.00
[BD-223701G ZMP1/96] Citizen 22mm BLDC w/ 99:1 gearbox

Citizen 22mm BLDC w/ 99:1 gearbox

BLDC Motor, 24VDC, 8300/12600RPM, 12.8mNm, 22mm OD
w/ ZMP Planetary gearbox, 96:1



$ 850.00
Synapticon Actilink-JD 10, STO (Absolute Encoder, Safe FieldBus / SafeMotion)

Synapticon Actilink-JD 10, STO

Actilink JD; 64.25mm; Outer Diameter: 98 mm; Reduction Ratio: 9:1; 380 W; 20/60Nm; 195/180RPM; 48 VDC, EtherCAT, 18bit encoder, STO
$ 1,991.00
[AJP-14-B] Synapticon Actilink JP-14 w/ brake

Synapticon Actilink JP-14 w/ brake

Actilink-JP integrated actuator w/ Somanet circulo, 72mm OD, 111mm length, 24-48VDC, 9.6/34Nm, 70RPM, dual encoder, EtherCAT, w/ brake
$ 2,940.00
[AJD-12] Synapticon Actilink-JD 12, STO (Absolute Encoder, Safe FieldBus / SafeMotion)

Synapticon Actilink-JD 12, STO

Actilink JD; 120mm; Outer Diameter: 120 mm; Reduction Ratio: 9:1; 700 W; m40/120Nm; 167/200RPM; 48 VDC, EtherCAT, 18bit encoder, STO
$ 2,243.00
[AJD-08] Synapticon Actilink-JD 8, STO (Safe FieldBus / SafeMotion, Absolute Encoder)

Synapticon Actilink-JD 8, STO

Actilink JD; 80mm; 17-315; EtherCAT; (Weight: 500 g; Outer Diameter: 80 mm; Length: 50 mm); Reduction Ratio: 7.75:1; Rated Output Power: 200 W;
Rated Torque: 10 Nm; Peak Torque: 20 Nm; No-Load Speed: 320 rpm;
Rated Load Speed: 280 rpm; Torque / Weight (Peak): 40 Nm/kg;
Torque / Weight (Rated): 20 Nm/kg, 48 V, EtherCAT, Encoder: Single
Encoder; Safety: STO and SBC; Brake: No brake
$ 1,640.00
Synapticon Actilink-SC Integro 8 (750W (48VDC, 2.4Nm, 3000RPM), Metric, No brake, No Multiturn)

Synapticon Actilink-SC Integro 8

Integrated Servo motor, 80mm frame, 48VDC, w/ SOMANET Integro
$ 2,200.17
Synapticon Actilink-SC Integro 6 (200W (48VDC, 0.65Nm, 3000RPM), Metric, No brake, No Multiturn)

Synapticon Actilink-SC Integro 6

Integrated Servo motor, 60mm frame, 48VDC, w/ SOMANET Integro
$ 1,752.00
[26.200.0.6] Phytron ZSS Stepper, 26mm frame, 25mNm holding

Phytron ZSS Stepper, 26mm frame, 25mNm holding

High precision 2-phase stepper motor, 26mm frame, 25mNm holding torque, 200-steps
$ 799.89
[25.200.0.6] Phytron ZSS Stepper, 25mm frame, 13mNm holding

Phytron ZSS Stepper, 25mm frame, 13mNm holding

High precision 2-phase stepper motor, 25mm frame, 13mNm holding torque, 200-steps
$ 643.00
