[IBI057 0168NE1000 E-S402] Delta Line Integrated BLDC, 57mm, 168W, EtherCAT

Delta Line Integrated BLDC, 57mm, 168W, EtherCAT

BLDC with integrated Motion Controller, Size 57 mm, Length (L) 164 mm, Interface EtherCAT, Rated Torque 0.44 Nm, Rated Power 168 Watt, Operating Voltage 24-36 Vdc
$ 1,944.00
[IBS080 0290NE100X C-S402] Delta Line Integrated BLDC, 80mm, 290W, CANOpen

Delta Line Integrated BLDC, 80mm, 290W, CANOpen

Size 80 mm, CANopen, 0.8/2.4 Nm, Rated Power 290 Watt, 24-48 Vdc
$ 1,607.10
[IVI080 0750NX100X C-S402] Delta Line IVI080, 750W Integrated Servo Motor, CAN

Delta Line IVI080, 750W Integrated Servo Motor, CAN

Integrated servo, 80mm frame, 48VDC, 750W, 3000RPM, 2.39/7.17Nm, 2500CPR encoder, CANOpen
$ 2,987.00

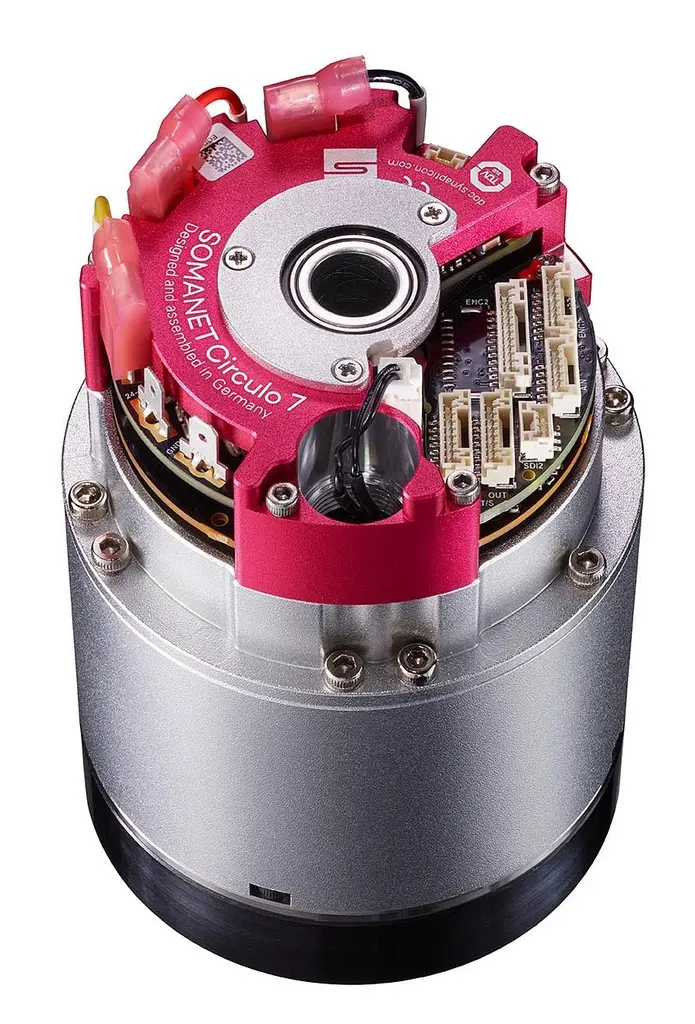

[AJP-I-17-101-EC-D1-SS-S-N-00-0000] Synapticon Actilink-JP 17

Synapticon Actilink-JP 17

Actilink-JP integrated actuator w/ Somanet circulo, 80mm OD, 128mm length, 24-48VDC, 22/66Nm, 46RPM, dual encoder, EtherCAT
$ 3,423.00
[IVI080 1000NE 1000C S402] Delta Line IVI080, 1kW Integrated Servo Motor

Delta Line IVI080, 1kW Integrated Servo Motor

80mm frame, 48VDC, 1kW, 3000RPM, 3.18/9.54Nm, 2500CPR encoder, CANOpen
$ 3,257.00

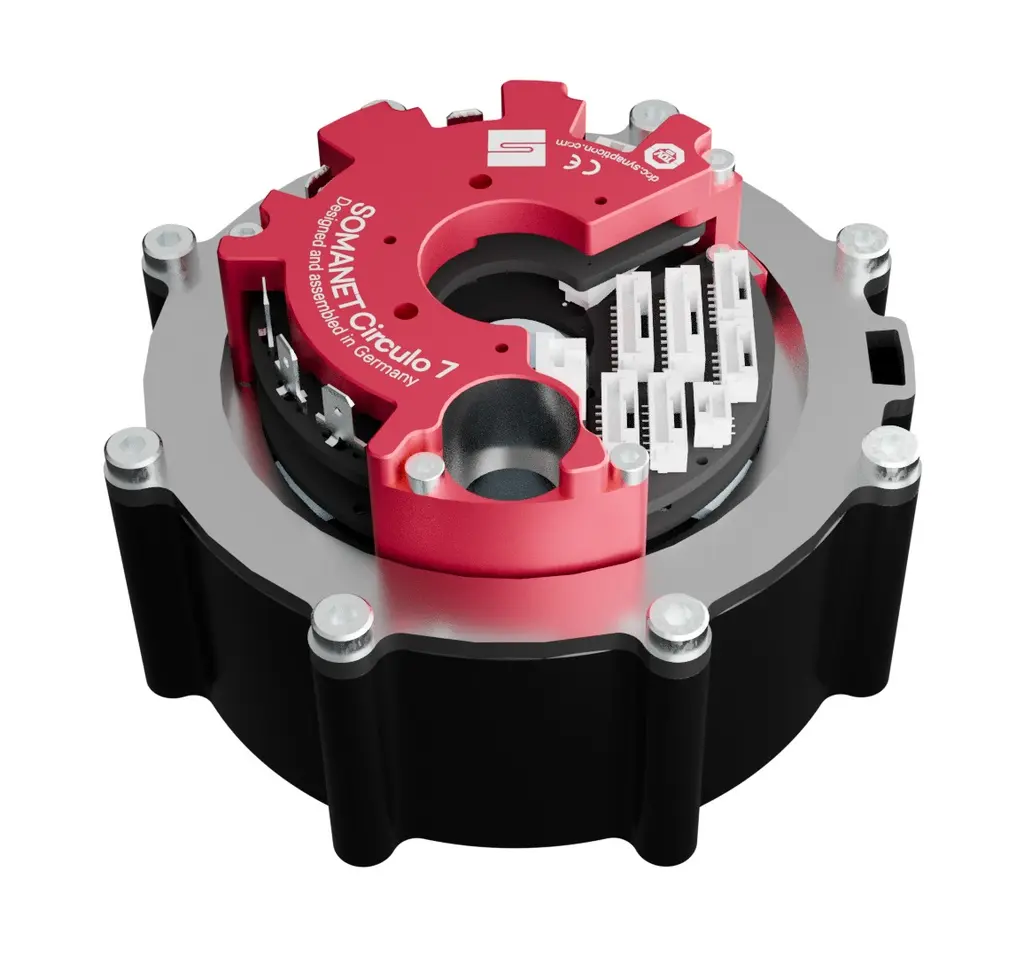

Synapticon Actilink-JD 10, STO (Absolute Encoder, Safe FieldBus / SafeMotion)

Synapticon Actilink-JD 10, STO

Actilink JD; 64.25mm; Outer Diameter: 98 mm; Reduction Ratio: 9:1; 380 W; 20/60Nm; 195/180RPM; 48 VDC, EtherCAT, 18bit encoder, STO
$ 1,991.00
[AJP-14-B] Synapticon Actilink JP-14 w/ brake

Synapticon Actilink JP-14 w/ brake

Actilink-JP integrated actuator w/ Somanet circulo, 72mm OD, 111mm length, 24-48VDC, 9.6/34Nm, 70RPM, dual encoder, EtherCAT, w/ brake
$ 2,940.00

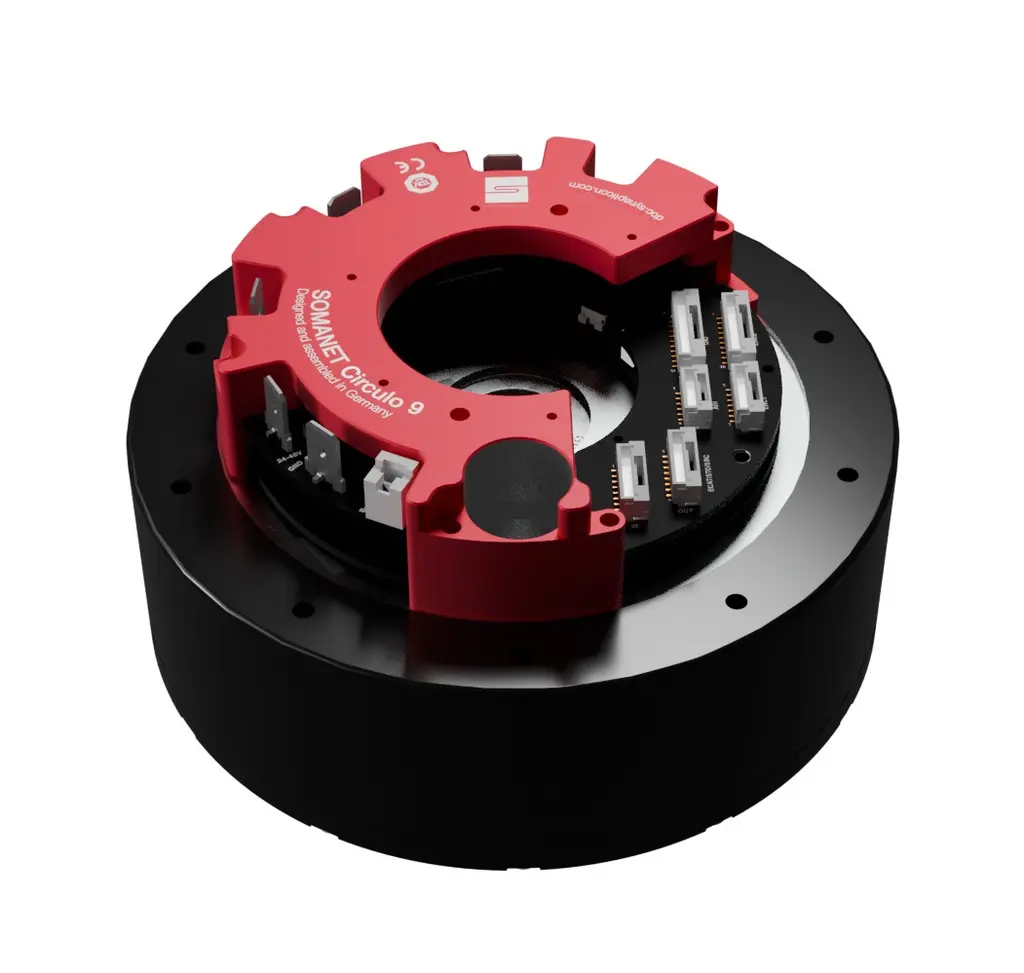

[AJD-12] Synapticon Actilink-JD 12, STO (Absolute Encoder, Safe FieldBus / SafeMotion)

Synapticon Actilink-JD 12, STO

Actilink JD; 120mm; Outer Diameter: 120 mm; Reduction Ratio: 9:1; 700 W; m40/120Nm; 167/200RPM; 48 VDC, EtherCAT, 18bit encoder, STO
$ 2,243.00

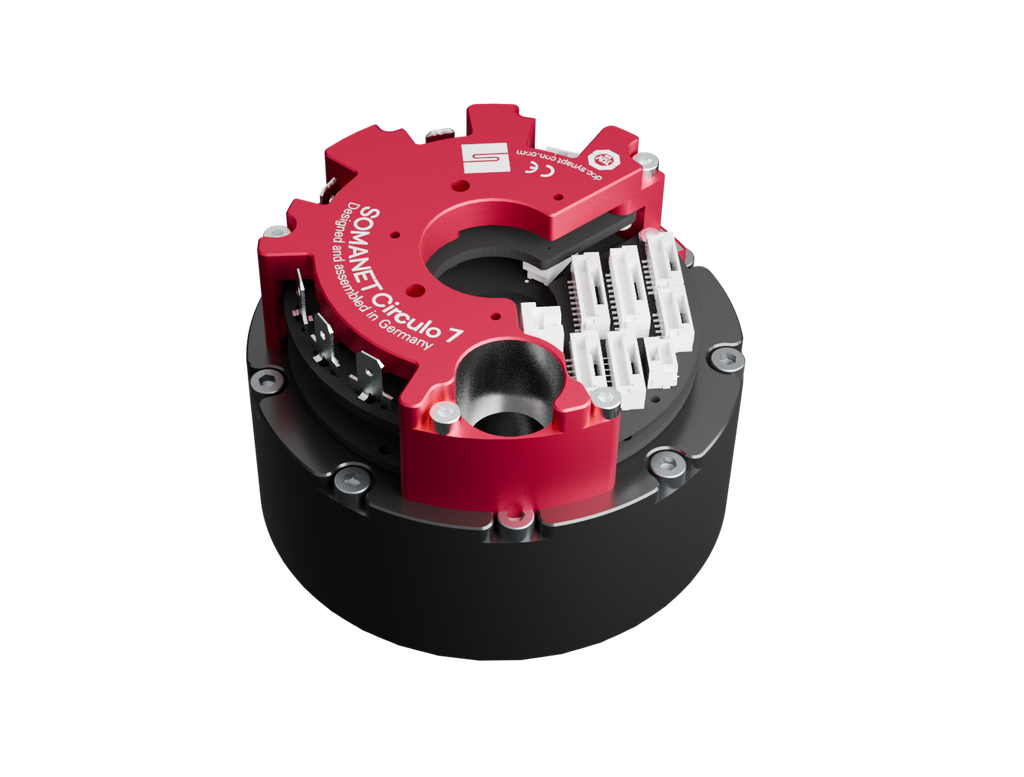

[AJD-08] Synapticon Actilink-JD 8, STO (Safe FieldBus / SafeMotion, Absolute Encoder)

Synapticon Actilink-JD 8, STO

Actilink JD; 80mm; 17-315; EtherCAT; (Weight: 500 g; Outer Diameter: 80 mm; Length: 50 mm); Reduction Ratio: 7.75:1; Rated Output Power: 200 W;
Rated Torque: 10 Nm; Peak Torque: 20 Nm; No-Load Speed: 320 rpm;
Rated Load Speed: 280 rpm; Torque / Weight (Peak): 40 Nm/kg;
Torque / Weight (Rated): 20 Nm/kg, 48 V, EtherCAT, Encoder: Single
Encoder; Safety: STO and SBC; Brake: No brake
$ 1,640.00

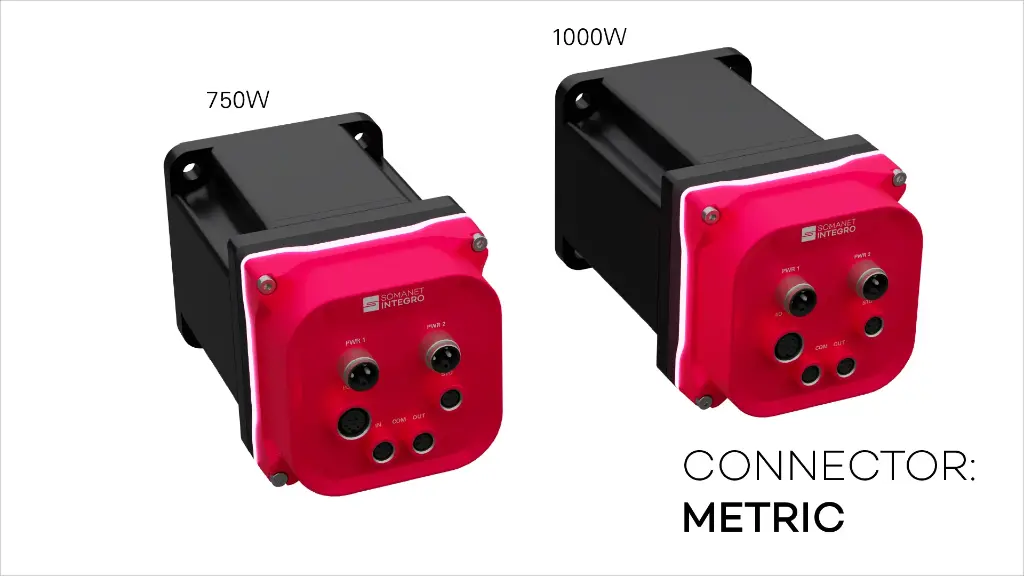

Synapticon Actilink-SC Integro 8 (750W (48VDC, 2.4Nm, 3000RPM), Metric, No brake, No Multiturn)

Synapticon Actilink-SC Integro 8

Integrated Servo motor, 80mm frame, 48VDC, w/ SOMANET Integro
$ 2,200.17

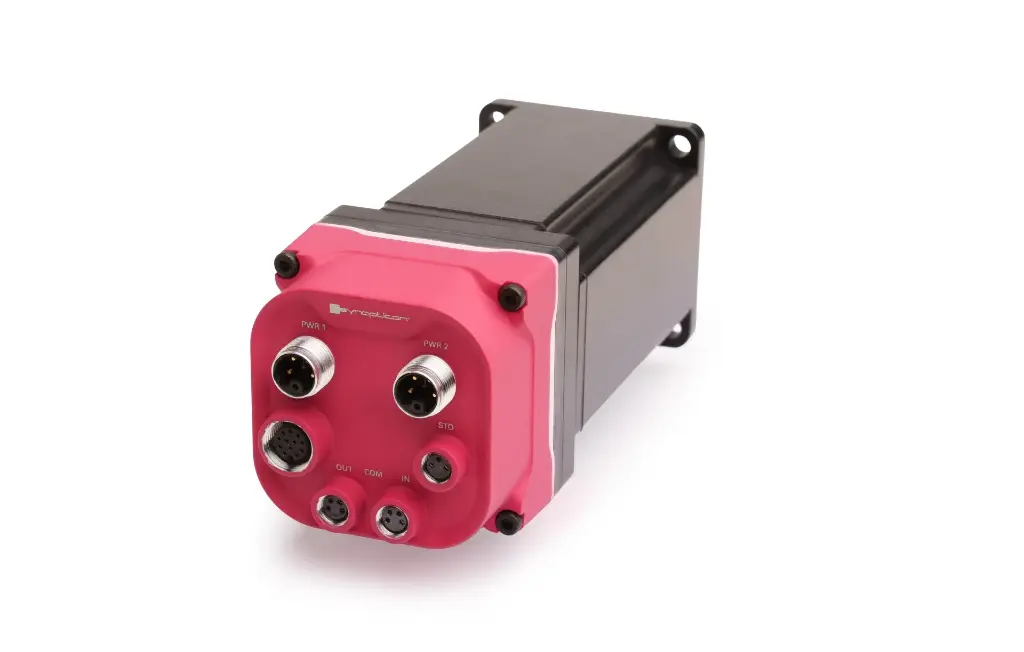

Synapticon Actilink-SC Integro 6 (200W (48VDC, 0.65Nm, 3000RPM), Metric, No brake, No Multiturn)

Synapticon Actilink-SC Integro 6

Integrated Servo motor, 60mm frame, 48VDC, w/ SOMANET Integro
$ 1,752.00
